Soldering Tips - Weller Compatible
Availability: Product not in stock!
Replacement soldering tips for Weller stations WTCPT, WTCPTD, WTCPTFE, WTCPN and WTCPS, and Weller hand pieces TC201T and TC201FE. Comparable to Weller's PT series of tips. See cross references or data sheets for tip-to-tip referencing.
Plato's C tip series are designed to hold a specific temperature. The temperature rating of each tip is indicated in the part number:
- -7 = 700°F / 370°C
- -8 = 800°F / 425°C
- -9 = 900°F / 480°C
FEATURES & BENEFITS
- Fast heat recovery increases soldering speed
- Longer tip life reduces soldering cost by decreasing tip change overs
PRODUCT DIMENSIONS

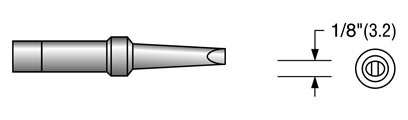

C-3036-7 700°F screwdriver
Cross Reference: Weller PTC7 10 Units/Case
C-3036-8 800°F screwdriver
Cross Reference: Weller PTC8 10 Units/Case
C-3036-9 900°F screwdriver
Cross Reference: Weller PTC9 10 Units/Case

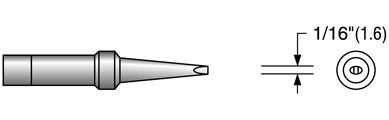

C-3039-7 700°F screwdriver
Cross Reference: Weller PTA7, Weller PTR7 10 Units/Case
C-3039-8 800°F screwdriver
Cross Reference: Weller PTA8, Weller PTR8 10 Units/Case

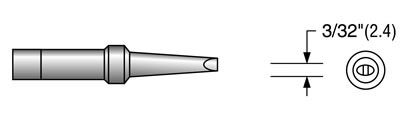

C-3040-7 700°F screwdriver
Cross Reference: Weller PTB7 10 Units/Case
C-3040-8 800°F screwdriver
Cross Reference: Weller PTB8 10 Units/Case

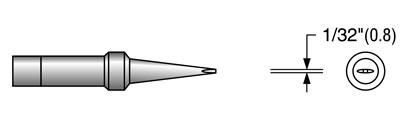

C-3100-7 700°F screwdriver
Cross Reference: Weller PTH7, Weller PTJ7 10 Units/Case
C-3100-8 800°F screwdriver
Cross Reference: Weller PTH8, Weller PTJ8 10 Units/Case

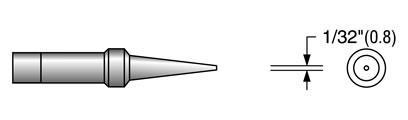

C-462-7 700°F conical
Cross Reference: Weller PTP7, Weller PTT7 10 Units/Case
C-462-8 800°F conical
Cross Reference: Weller PTP8 10 Units/Case

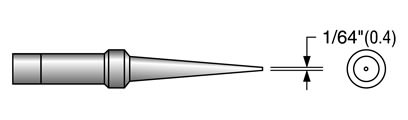

C-494-7 700°F long conical
Cross Reference: Weller PTS7 10 Units/Case
C-494-8 800°F long conical
Cross Reference: Weller PTS8, Weller PTT8 10 Units/Case

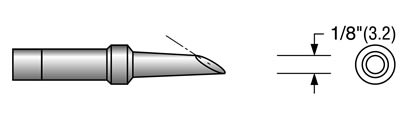

C-5141-7 700°F bevel
Cross Reference: Weller PTCC7, Weller PTDD7 10 Units/Case
C-5141-8 800°F bevel
Cross Reference: Weller PTCC8, Weller PTDD8 10 Units/Case
C-5141-9 900°F bevel
Cross Reference: Weller PTCC9, Weller PTDD9 10 Units/Case
Reviews
There are yet no reviews for this product.
